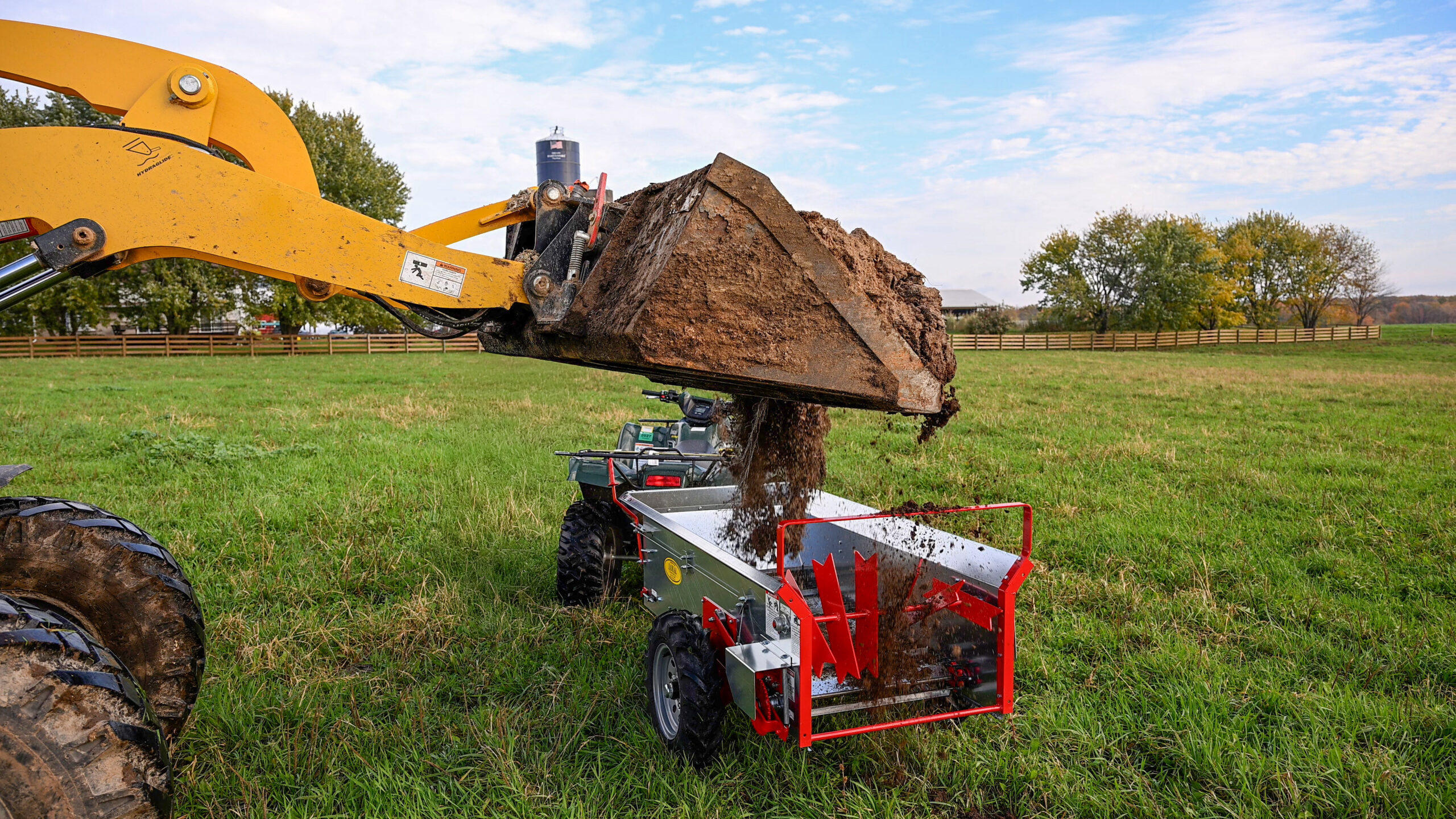

How is the manure spread?

The apron chain moves the manure into the beater and the beater spreads the manure out the back of the spreader.

What is the capacity of the Roth Compact Manure Spreader?

The Roth Compact Manure Spreader MS23B model has a 28 cu. ft. (23 bushel) capacity.

Can the manure spreader be moved by hand?

Yes — it’s well-balanced and designed to be easily maneuvered by hand.

Does the Roth Compact Manure Spreader have a ratchet or continuous drive system?

It uses a ratchet drive system, which advances the apron chain incrementally.

Is the manure spreader PTO-driven?

No, it is ground-driven and does not require a PTO.

Is the manure spreader fully assembled upon delivery?

It requires minimum assembly, simply bolt the tongue to the frame.

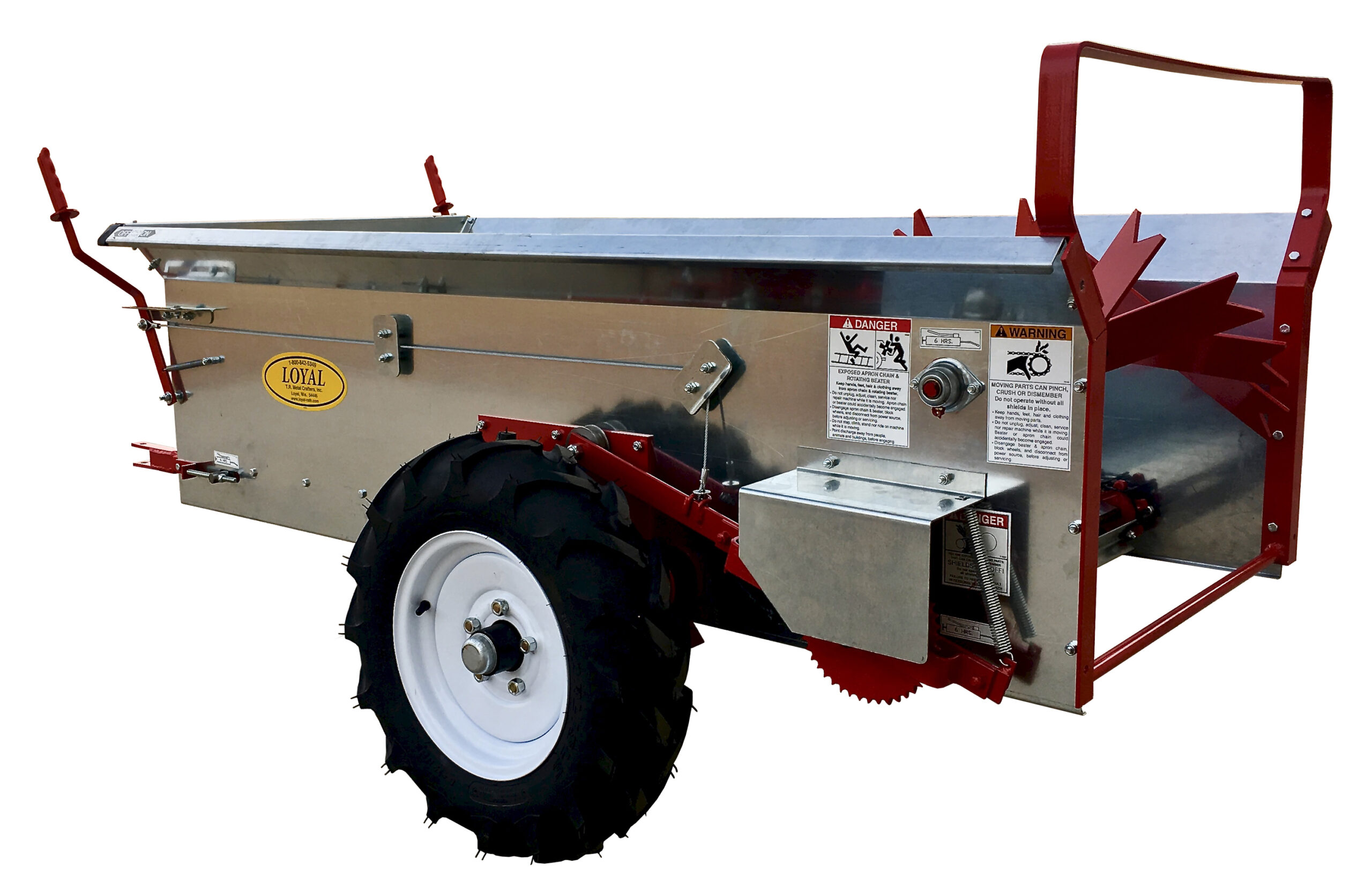

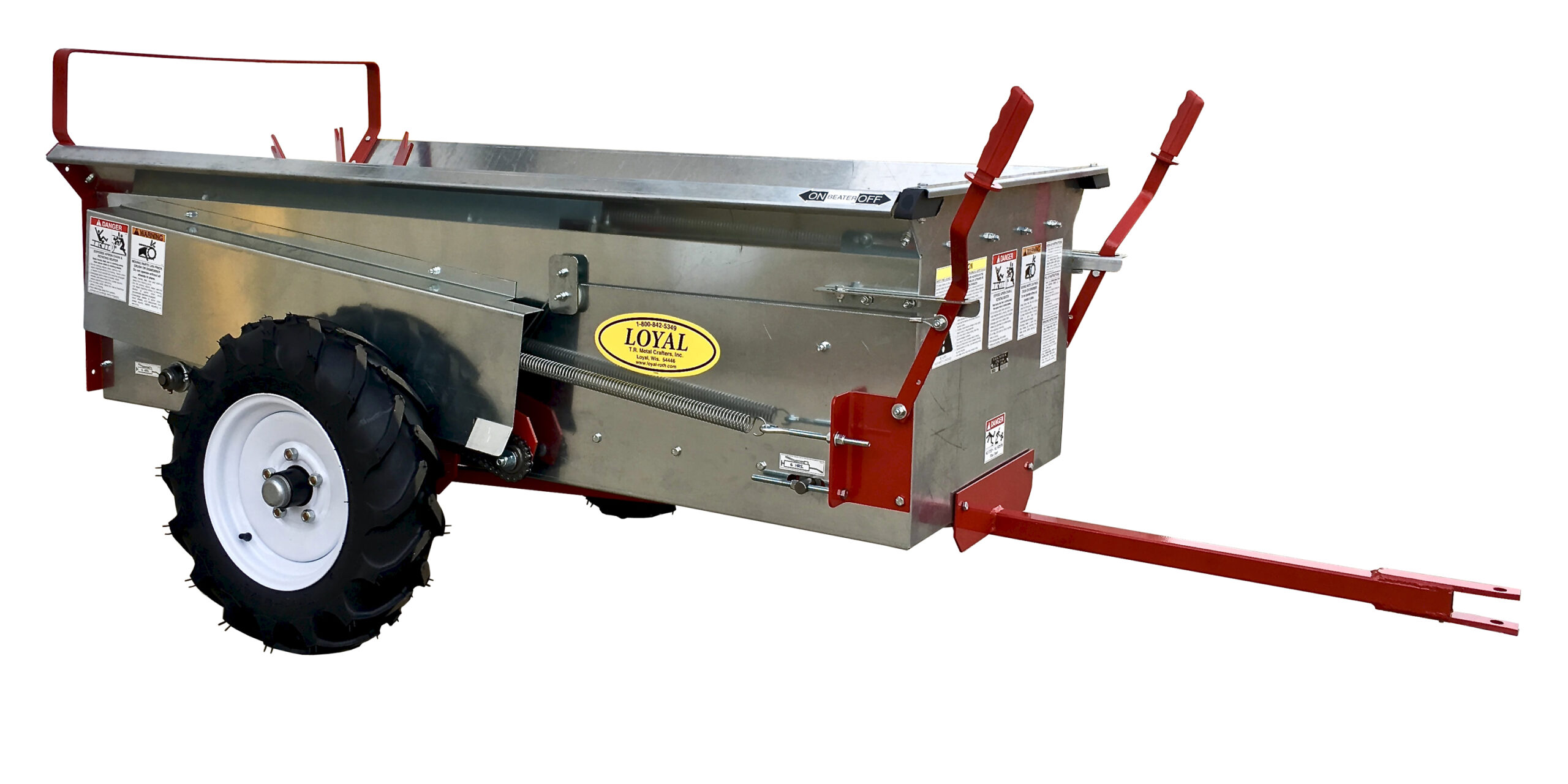

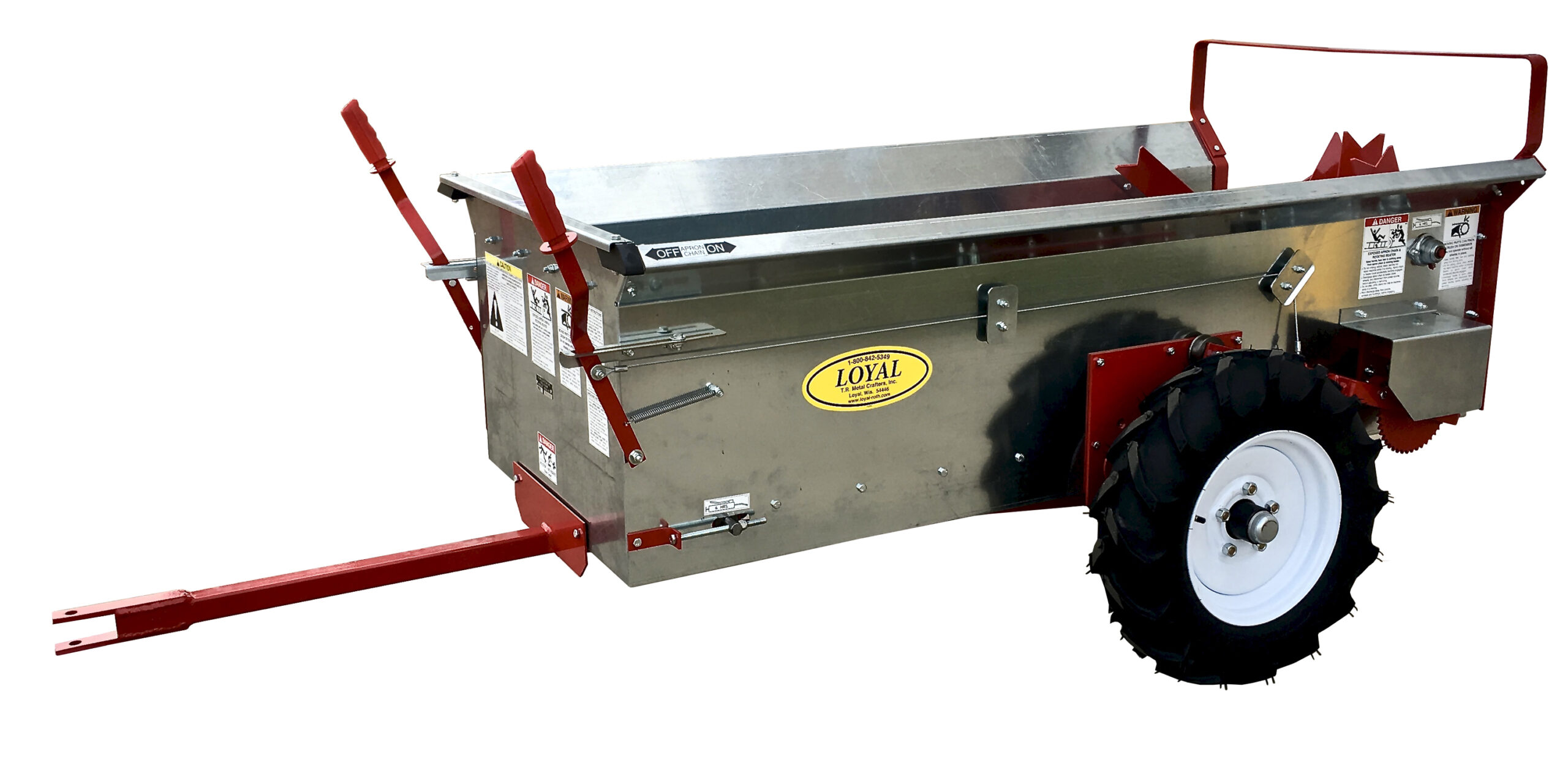

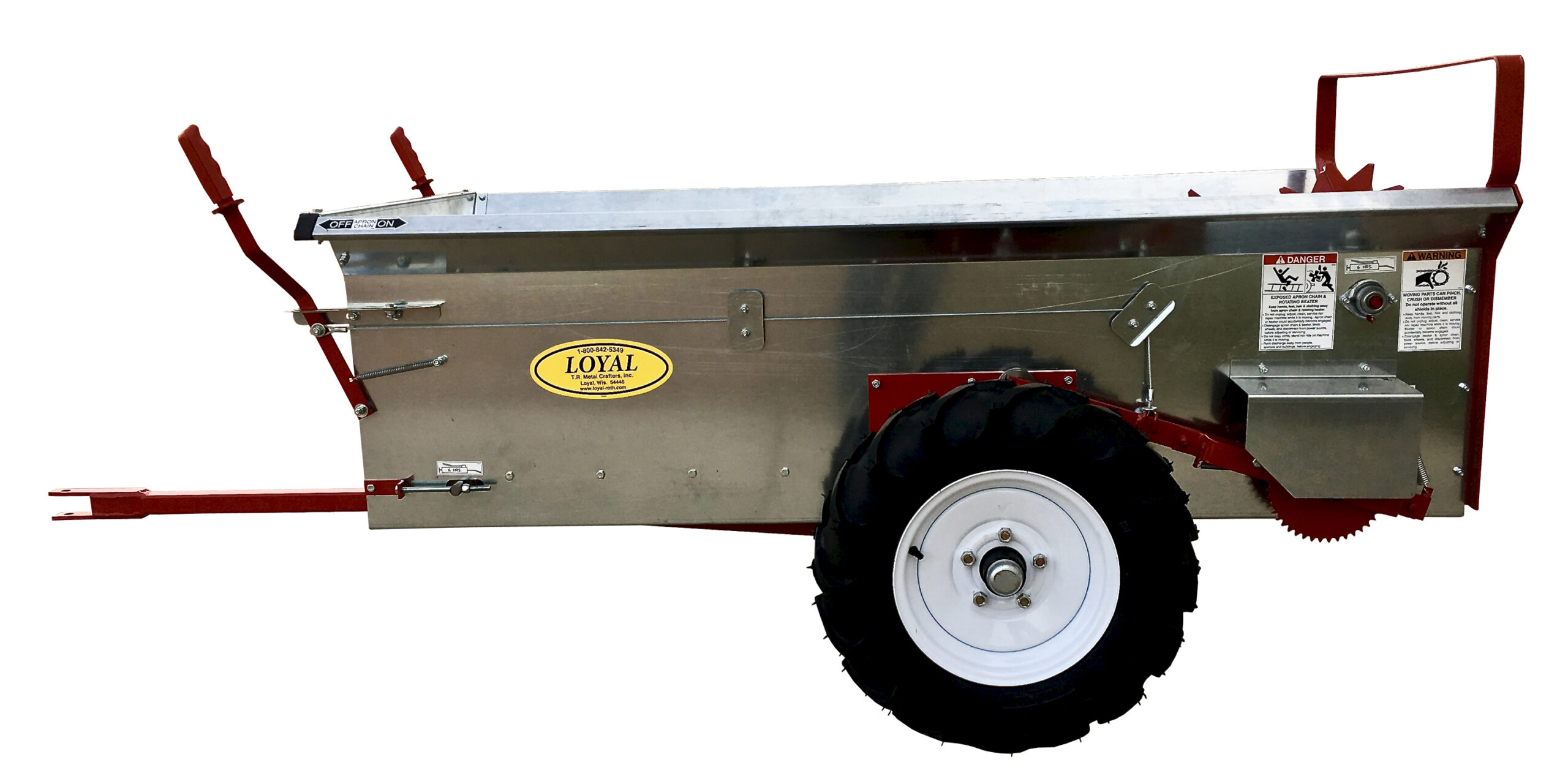

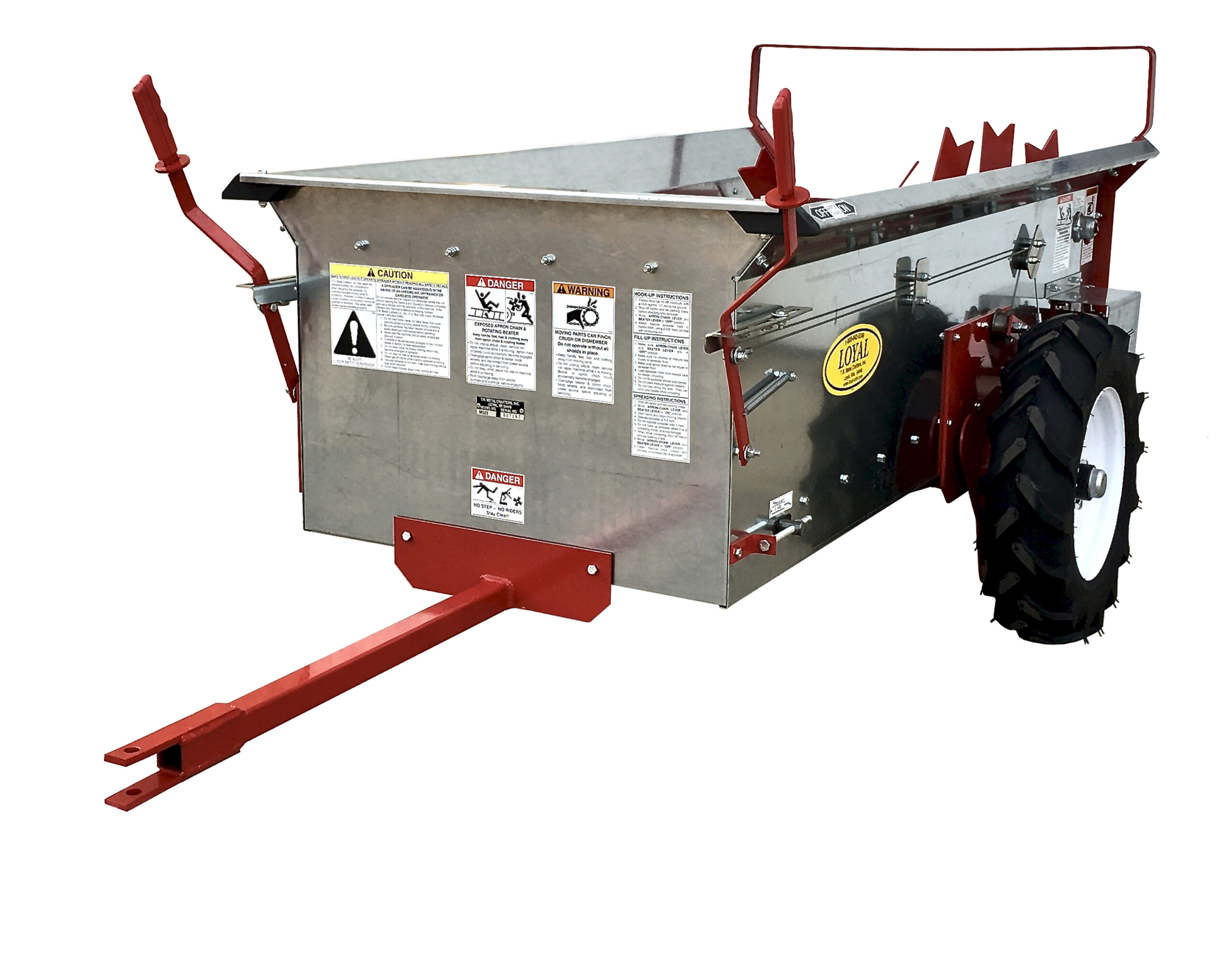

Roth Compact Manure Spreader

A compact, towable manure spreader with a 28 cu ft capacity engineered for durability and ease of use.

SKU: MS23B

$3,423.00

+ Add to quote

Call For
Product Questions

Key Feature

14-gauge galvanized steel box resists corrosion and wear

Product Features

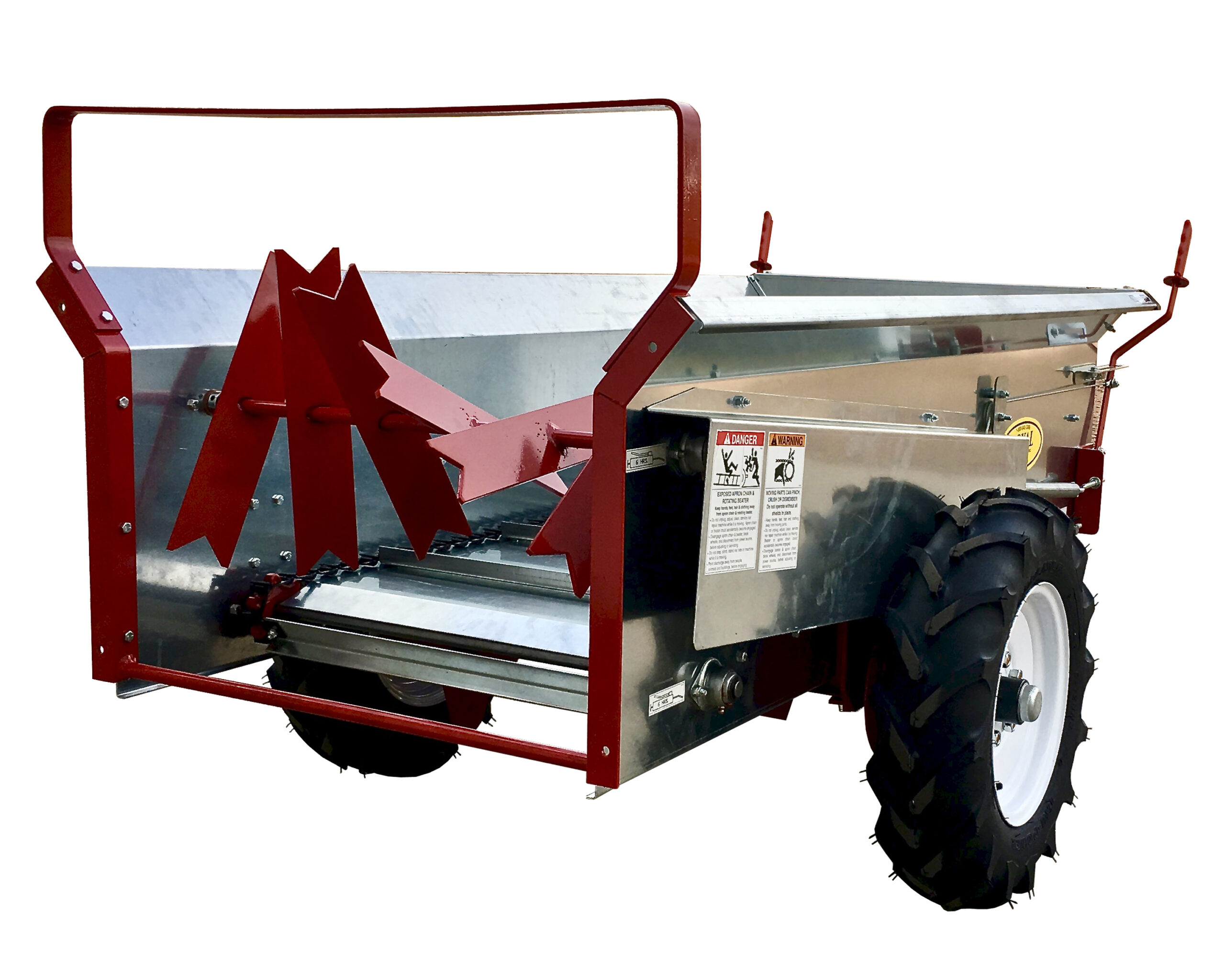

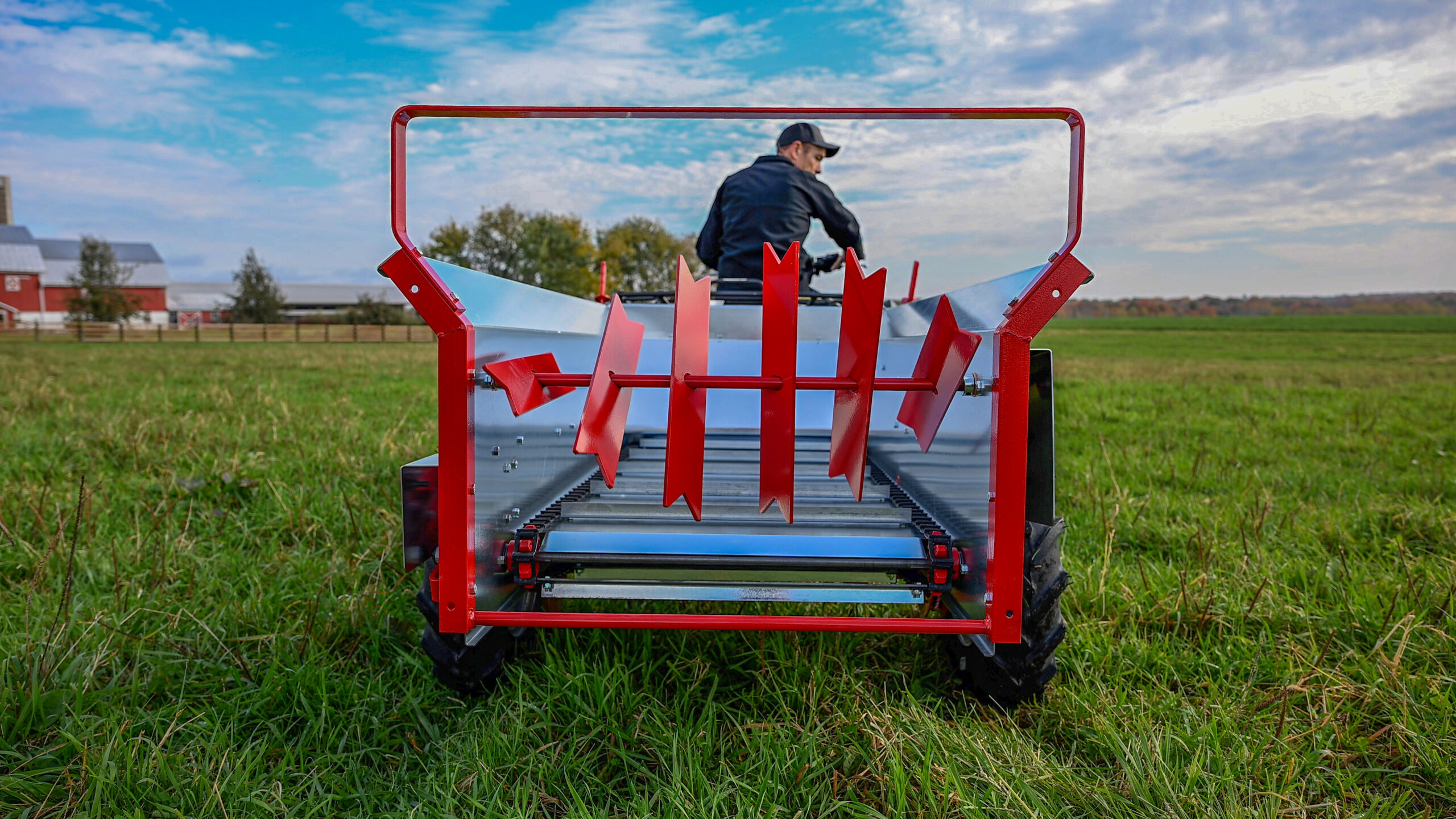

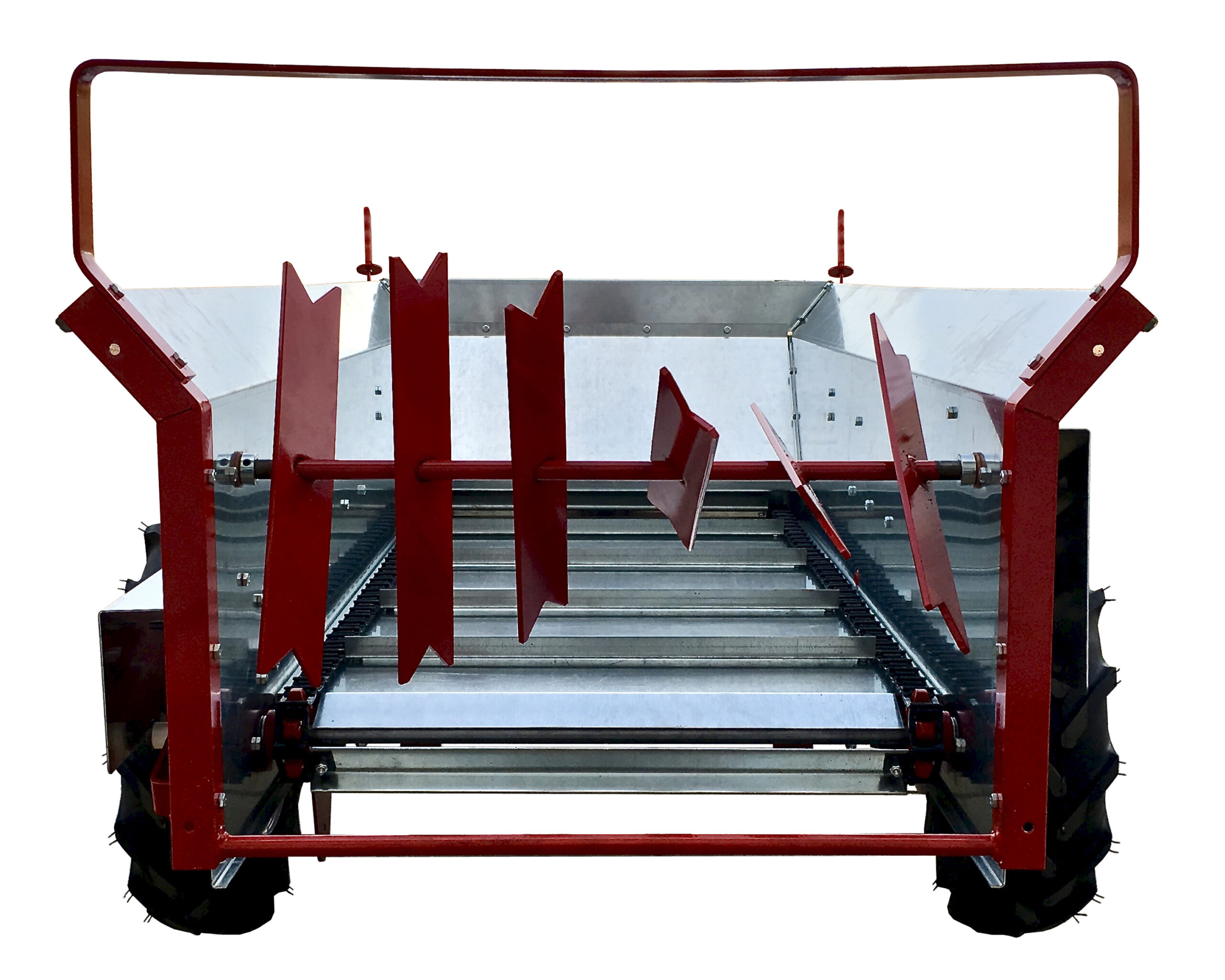

Bear-claw beaters with 12 paddles ensure even distribution
Greasable self-aligning bronze pillow-block bearings for smooth operation
High-flotation tires provide ground grip and stability
Ratchet apron drive with No 55 chain and 10 flites
Requires only 10+ HP. compatible with ATVs and compact tractors

Uses

Efficiently spreads manure for small-scale farms and livestock operations

Ideal For

Hobby farms, horse stables, and small acreage properties

Overall Length

101"

Overal Width

46-1/2"

Overall Height

40"

Heaped Capacity

23 Bu. (28.62 cu. Ft.)

Additional Specifications

Box: 14 GA Galvanized Steel
Cross Members (14 GA. GALV.): 2
Beaters (Bear-claw Design): 12-Paddles
Beater Shaft: 3/4" Diameter
Beater Drive: #40 Roller chain
Bearings: Greasable, bronze, self-aligning, pillow-block
Apron Chain: No. 55
Apron Chain Flites: 10
Apron Drive: Ratchet
Axle Spindle: 1" Diameter
Axle Bearings: Timken, taper-roller bearings
Wheels: 12 x 4 x 5
Hubs: 5-bolt
Tires: 22.7" O.D., High-flotation, ground-gripping
Tongue: 1-1/2" Square tubing
Hitch Pin: 1/2" diameter (not included)
Horsepower Required: 10+ HP

Competitor Comparison

Feature	Roth	Other Brands
Spreader Box	Galvanized	Painted
Paint Finish	Powder coated finish = longer life	Not powder coated = shorter life

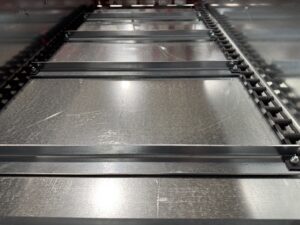

Apron Chain Flights	10 gauge steel = thicker	14 gauge steel = thinner
Spread Weight	385 lbs = heavier	325 lbs = lighter

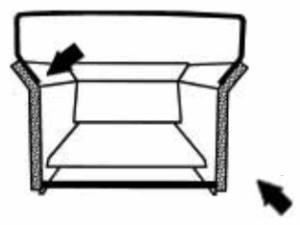

Sides	Flared 36.5″ box = wider Easier to load Greater capcity Less spillage Heavier 1.5″ angle iron rear box frame	Non flared 27.5″ box = narrower More difficult to load Less capacity More spillage and mess Lighter: 1.25″ flat bar rear box frame

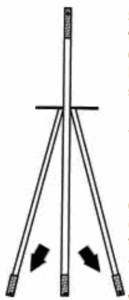

Hitch Design	A-frame hitch = stronger 1.5″ square tube pole = larger Pulling force shifts to stronger outer axle points Prevents axle flexing Spreads weight across a wider area	Straight pole hitch = weaker 1.25″ square tube pole = smaller Pulling force pushes into weaker center axle More axle flexing Weight concentrated in a narrow area

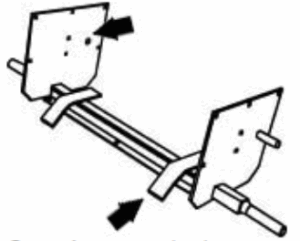

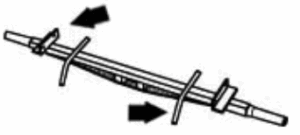

Axle	1.5″ square tube axle = larger 48 lbs axle = heavier Non flexing reinforced design reduces stress on the box	1.25″ square tube axle = smaller 23 lbs axle = lighter Flexing design increases stress on the box
Spreader Box Mounts	Oversize spreader box mounts Distribute weight across a wider area Wider apron chain flight return guides	Smaller mounts Concentrate weight in a narrow area Narrow apron chain flight return guides
Idler Sprockets	Greasable idler sprockets Reduce wear Increase service life	Non greasable idler sprockets Increase wear Shorten service life
Idler Sprockets	3″ bronze lined pivot = wider Reduces side movement Holds alignment longer Adjustable sprockets simplify service	.25″ non lined pivot = narrower More side movement More misalignment after use Non adjustable sprockets
Control Handles	20″ controls = longer Rubber grips More leverage Easier to switch On and Off	12″ controls = shorter No rubber grips Less leverage Harder to switch On and Off

Frequently Asked Questions

How is the manure spread?: The apron chain moves the manure into the beater and the beater spreads the manure out the back of the spreader.
What is the capacity of the Roth Compact Manure Spreader?: The Roth Compact Manure Spreader MS23B model has a 28 cu. ft. (23 bushel) capacity.
Can the manure spreader be moved by hand?: Yes — it’s well-balanced and designed to be easily maneuvered by hand.
Does the Roth Compact Manure Spreader have a ratchet or continuous drive system?: It uses a ratchet drive system, which advances the apron chain incrementally.
Is the manure spreader PTO-driven?: No, it is ground-driven and does not require a PTO.
Is the manure spreader fully assembled upon delivery?: It requires minimum assembly, simply bolt the tongue to the frame.
