Hayrite Standard Elevator (HEC)

Name: Hayrite Standard Elevator (HEC)
Brand: Hayrite
SKU: 303
Availability: InStock

with No. 55 steel detachable chain

A heavy-duty hay bale elevator system built with No 55 steel detachable chain and reinforced steel tubing for reliable bale handling

Model

Clear

SKU:

+ Add to quote

Call For
Product Questions

Key Feature

High-strength 1" square tubing with 70% more flexural strength than round tubing

Product Features

Thick-walled 15 ga steel construction with bridge truss reinforcements to prevent sagging and twisting
Heavy-duty No 55 conveyor chain with raised links every 24″ for positive bale movement
Bronze pillow-block bearings and greaseable idler sprockets for smooth operation
Adjustable motor mount with belt take-up and quick-detach design for easy storage
Powder-coated red finish for long-lasting durability and visibility

Uses

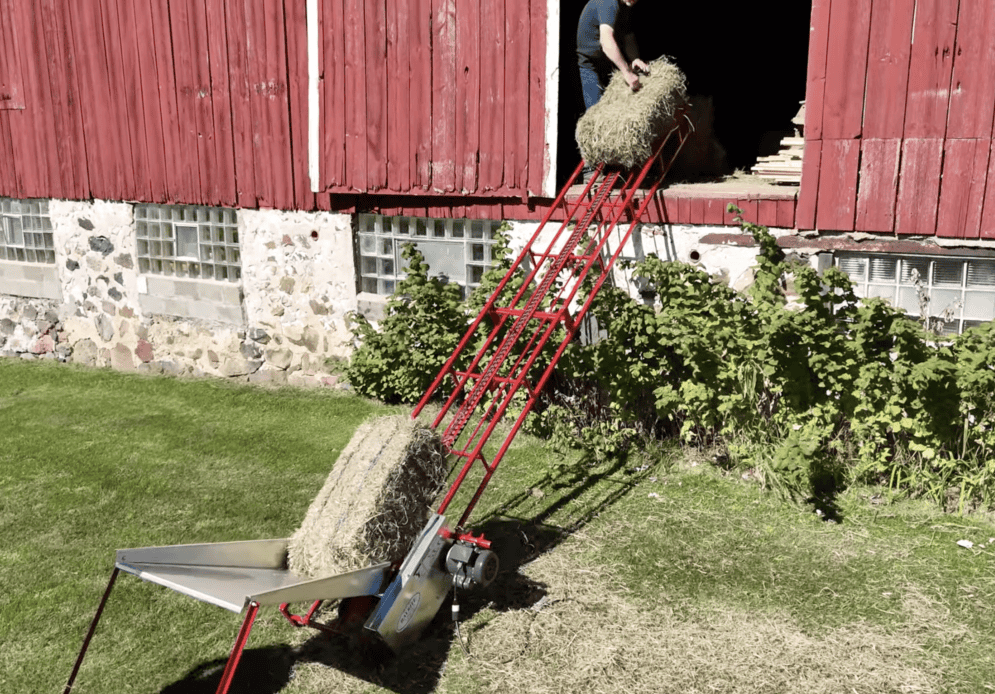

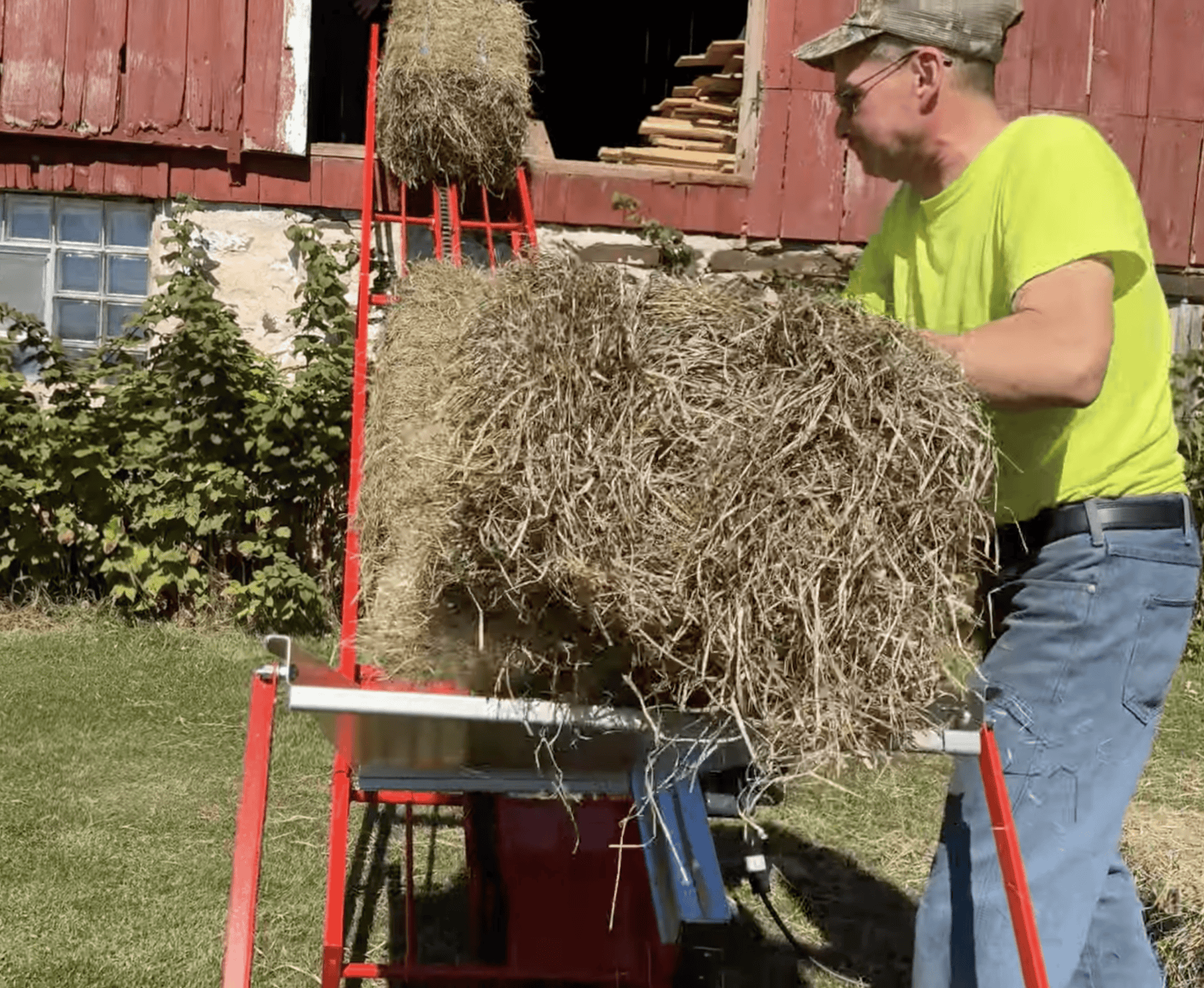

Transports hay bales efficiently from ground level to loft or storage areas

Ideal For

Farms and ranches needing a durable, customizable hay bale transport solution

Description

16' Elevator — electric motor and motor pulley not included

Sale Price

$1,649.00

Product Resources

Hayrite Standard Elevator (HEC) Manual

Hay Bale Elevator Length Guide

Hayrite Gives You Stronger Construction, Better Engineering!

	Extra Heavy Duty	Standard
High-strength 1″ square tubing — 70% more flexural strength than comparable round tubing
Heavier design — use as inclined conveyor, mow conveyor or both
Thick-walled 18 ga. steel construction
Thicker-walled 15 ga. steel construction
‘Bridge Truss’ side reinforcements along full length of elevator prevent sagging, bowing, twisting, and bending. Inclined elevators are self supporting up to 54′
Higher side rails allow bales to sit down deep in elevator (preventing irregular shaped bales from tumbling out)
Extra heavy-duty No.62 conveyor chain equipped with raised links every 24″ for more positive movement
Heavy-duty No. 55 conveyor chain equipped with raised links every 24″ for more positive movement
Bronze, pillow-block bearings on drive unit — self-aligning with grease zerks
Full 1″ solid head and jack shafts
Permanently-lubricated, sealed ball-bearing idler sprockets
Greaseable, bronze-bushing idler sprockets
Stronger No. 40 roller-chain final drive
All electrically wire-welded construction — welds go all the way around seams for added strength
Sturdy, universal motor mount for electric motor is adjustable for leveling, belt take-up and “stop and go” operation. Mount is quickly detachable for inside storage of motor (drive belt included)
Powder-coated bright-red finish… for longer life bright-red finish… for longer life

Accessories

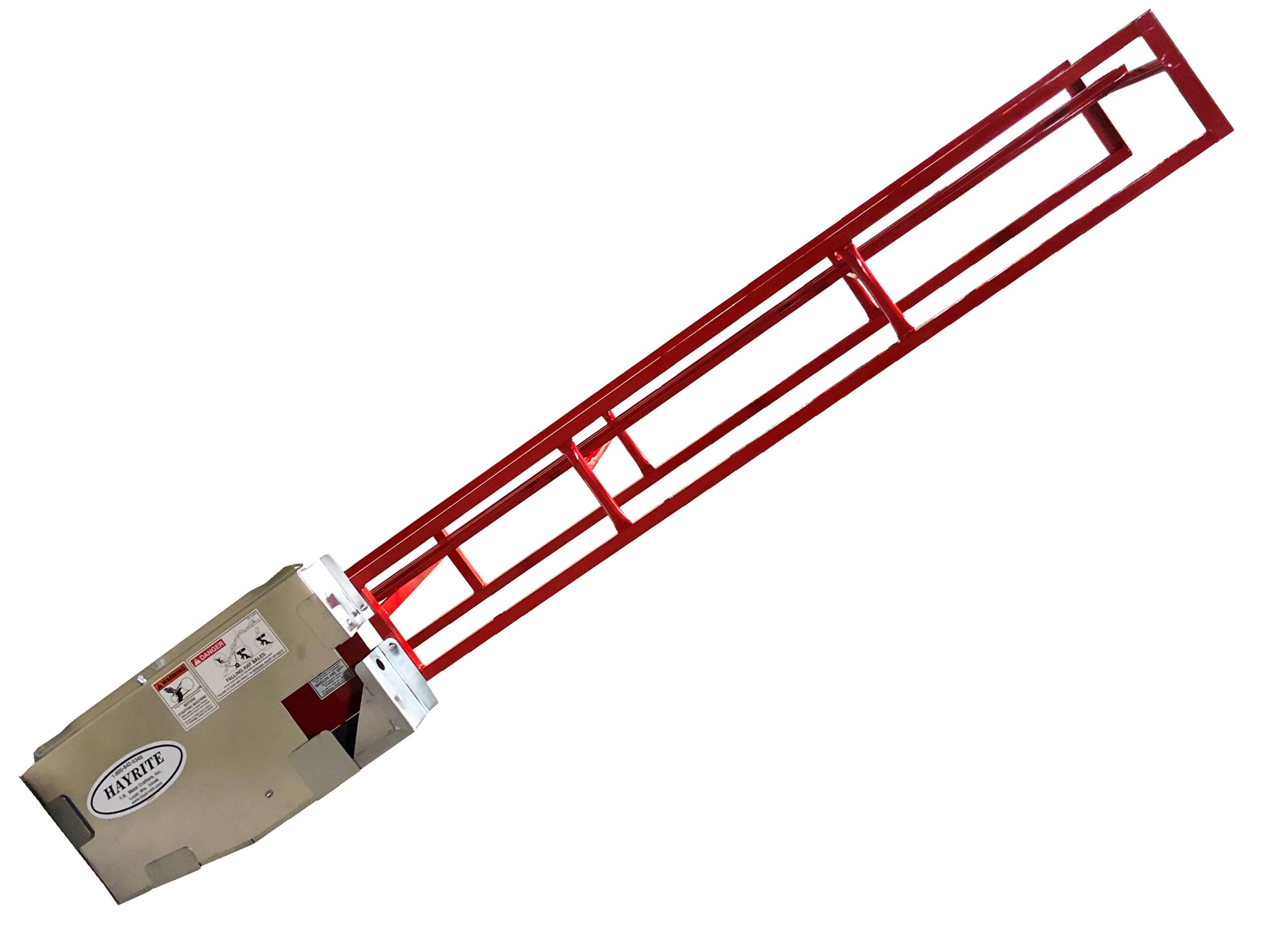

Hay Bale Arrangers

Bale Chute 6′ length

Bale chute 4′ length

Bale Guides

Bale Kickoff

Bale Rails

Connector Plates

Electric Motors

Motor Pulleys

Mow Hangers

Transport Hitch

Frequently Asked Questions

Can the elevator be used for other materials besides hay?

While designed for hay bales, the galvanized elevator system may be adapted for lightweight materials like straw or feed bags with proper support.

Does the Hayrite hay bale elevator come with a motor?

Motors are sold separately, allowing users to choose the best power option for their galvanized hay bale elevator system.

How long are the elevator sections?

Standard galvanized elevator sections are available in 4' or 8' long options, and multiple sections can be joined to reach the desired length.

Is the elevator easy to assemble?

Yes, the modular design of the hay bale elevator system allows for straightforward assembly and installation. We have full instructions on assembly available on our Youtube channel.

What types of motors are compatible with the elevator?

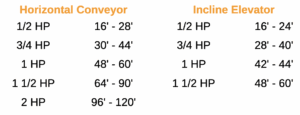

Hayrite hay bale elevators can be powered by electric motors. Motors available include 1/2 hp, 3/4 hp, 1 hp, 1.5 hp, and 2 hp. Bales should be "pulled toward" electric-motor drive end. However, if elevator is mounted on a transport, drive end must remain on the ground and "push bales".
